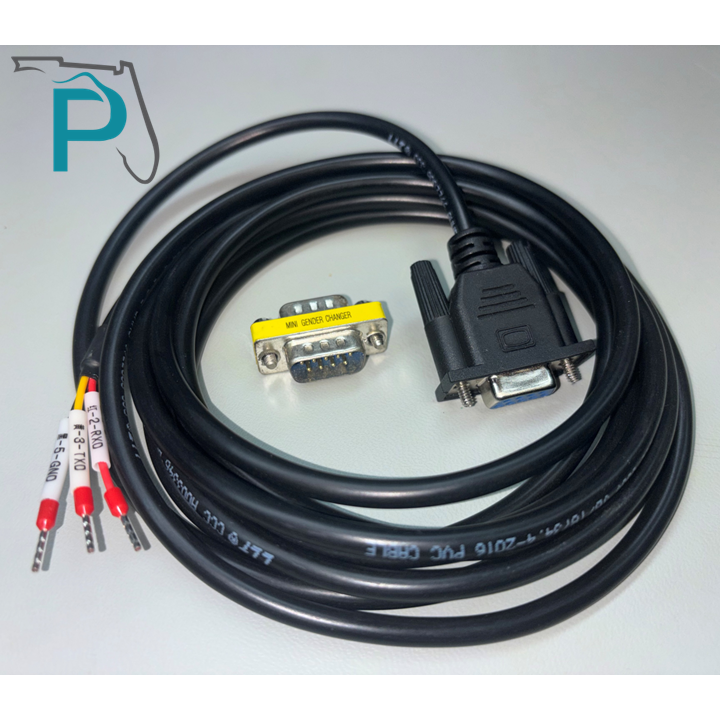

DB9 Serial Connector to Bare Wire for Scale Data Output With Gender Changer

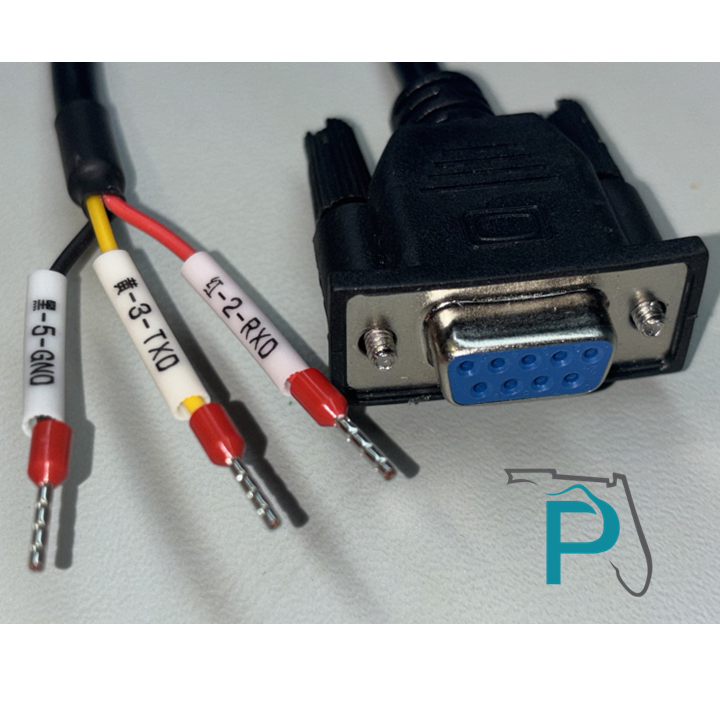

Female DB9 Connector Cable with x3 26 AWG wires connected to GND, TXD, and RXD. The wire ends are terminated with a wire ferrule and label sleeve.

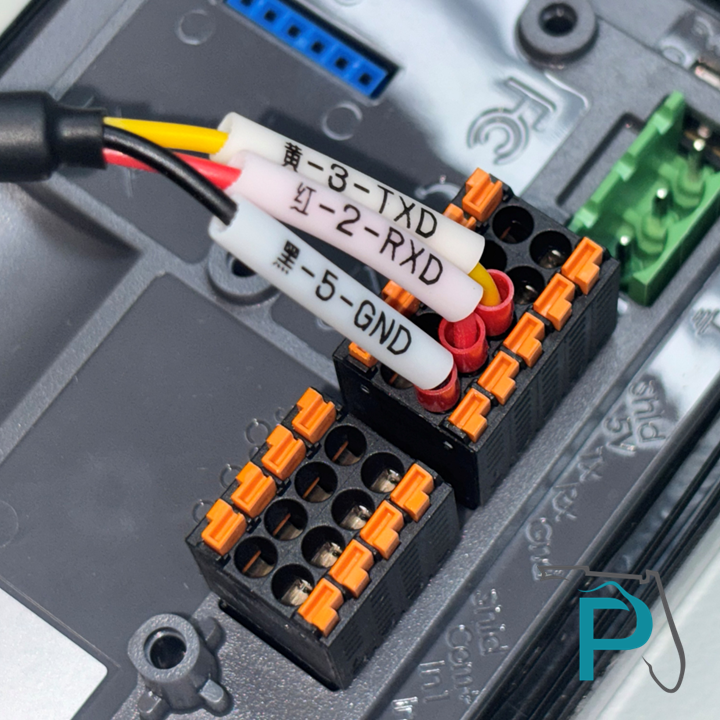

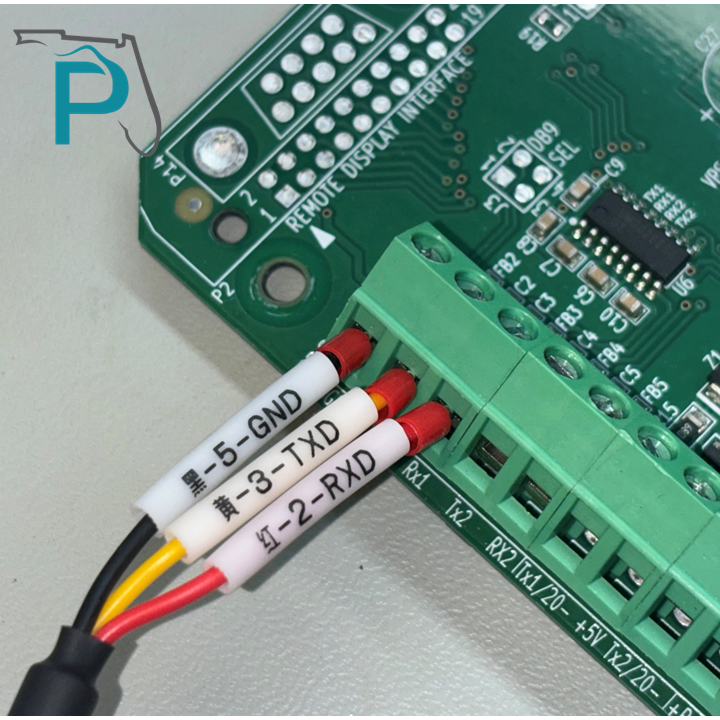

This is the perfect cable to connect your scale indicator circuit board to the printer or PC in your office. Save time and hassle buying a pre-made cable instead of fiddling around onsite trying to make a cable with soldering connectors or crimping pins...
- Larger 26 Gauge wire for robust connections less susceptible to yanks and tugs
- No other conductors in the cable, only the 3 for standard bi-directional RS-232 standards
- Unshielded cable for small distance transmission to printers, computers & remote displays etc.
- Labelled wires with: ground (GND), transmit(TXD) and receive(RXD) conductors clearly shown
- High quality ferrules pre-crimped onto bare conductors for improved connection reliability
- Standard RS-232 Data connection pin outs
- Black Ground (GND) Conductor to pin 5 on DB9
- Yellow Transmit (TXD) conductor to pin 3 on DB9
- Red Receive (RXD) conductor to pin 2 on DB9
- Available in 3 Lengths:
- 3 feet long (1 meters)
- 6.5 feet long (2 meters)
- 10 feet long (3 meters)
- INCLUDED MALE to MALE DB9 Gender Changer to ensure compatibility with nearly any application or cable combination

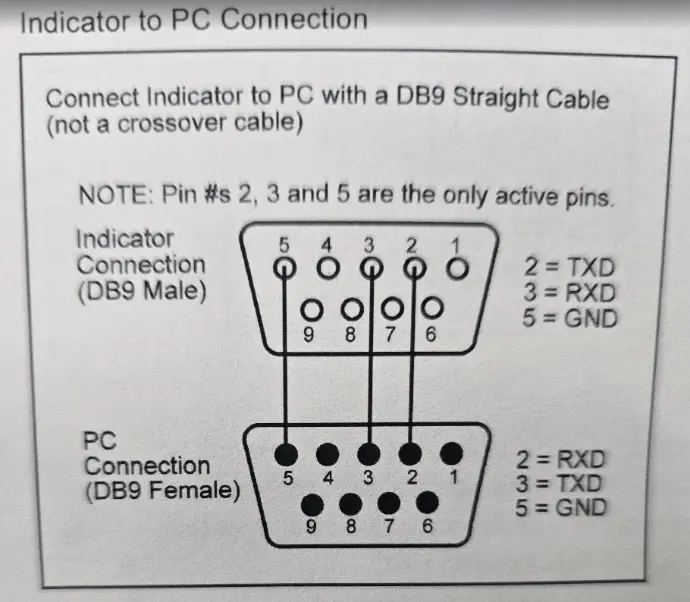

Above is the most common connection for the DB serial cable from a scale sending data out to a PC or computer nearby that would be capturing the weight values digitally and tying it into a weight ticket or database
