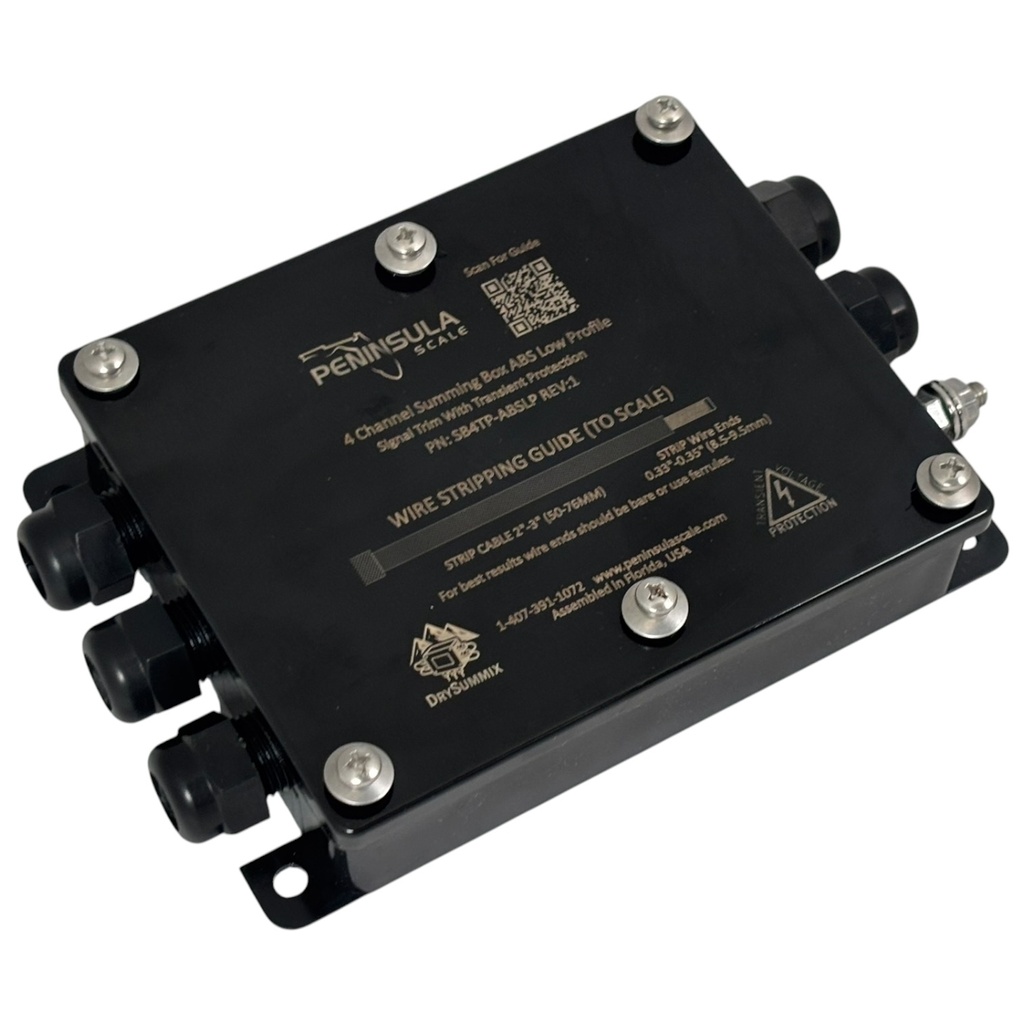

SB4TP ABS Low Profile Junction Box - 4 Channel - Signal Trim with Transient Protection

This ABS Low Profile part number (SB4TP-ABSLP) INCLUDES:

The enclosure

The circuit board

Accessory Pack (desiccant pack & Sealing Screws)

INSTALLATION GUIDE

• Preset Signal Trimming for faster calibrations and easier adjustments
• 24-16 AWG Made in Germany WAGO brand color-coded spring connectors are easy to use, reliable, and of the highest quality available on the market
• Clear, easy-to-read labeling on the board for all connections and trim direction
• Sensitive Gas Discharge Tubes (GDTS) isolate your scale system from transient voltage that might be picked up on home run cables
• Centrally located terminal blocks leave extra room for manipulating wiring within the tight confines of your typical floor scale or tank junction box enclosure
• Blue and Yellow Sense terminals allow for easy termination of 6-wire home run cables
• Individual jumpers to enable or disable a load cell input so you can connect two, three, or four individual load cells
• Expansion terminal allows easy connection of multiple boards together for multi-board applications like portable truck scales or large tanks and hoppers with long distances between cells or odd numbers of cells.
  • Sense disconnect trace is exposed, allowing users to cut the trace to expand the sense wires out to the furthest board in your chain of boards

Ideal for use with floor scales, tank and hopper scales.
