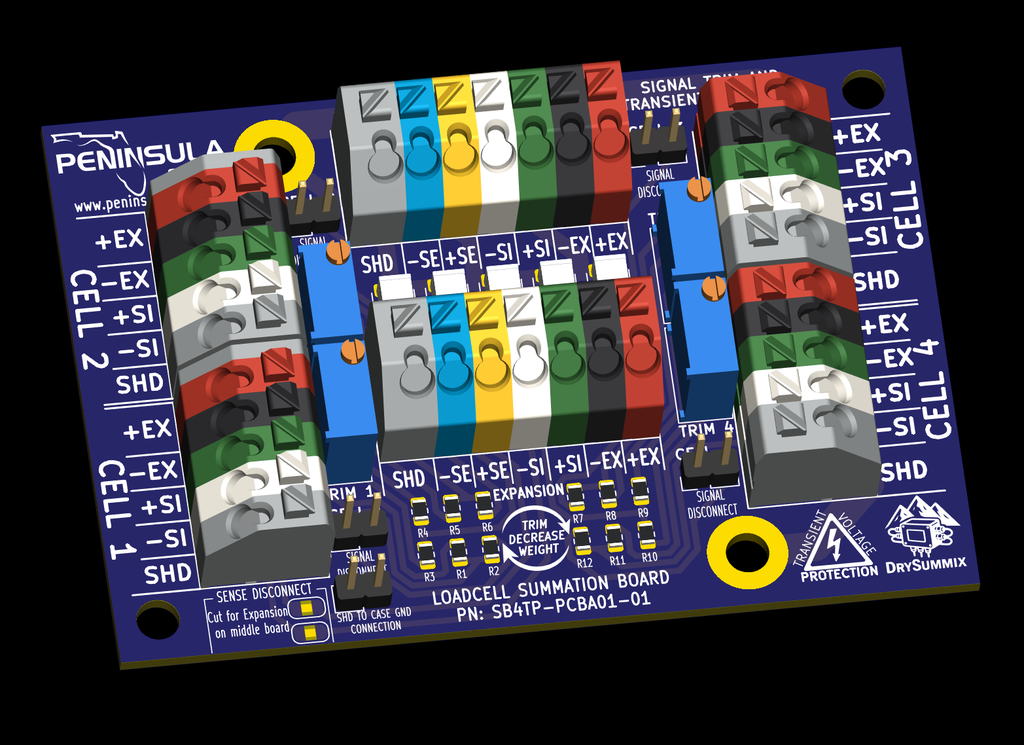

PS 4 Channel Signal Trim Junction Box Circuit Board

• Preset Signal Trimming Name Brand Potentiometers
• Name-brand Made in Germany WAGO brand color-coded spring connectors are easy to use, reliable, and of the highest quality available on the market
• Conformal-coated circuit board for environmental protection
• Clear, easy-to-read labeling on the board for all connections and trim direction
• Sensitive Gas Discharge Tubes (GDTS) isolate your scale system from transient voltage that might be picked up on long home run cables
• Centrally located terminal blocks leave extra room for manipulating wiring within the tight confines of your typical floor scale or tank junction box enclosure
• Blue and Yellow Sense terminals allow for easy termination of 6-wire home run cables
• Individual jumpers to enable or disable a load cell input so you can connect two, three, or four individual load cells
• Expansion terminal allows easy connection of multiple boards together for multi-board applications like portable truck scales or large tanks and hoppers
• • Sense disconnect trace is exposed, allowing users to cut the trace to expand the sense wires out to the furthest board in your chain of boards

Peninsula Scale Part number PMG-SB4TP-PCBA01

Applications include Floor Scales, Tank Scales & Hopper Scales

Mounting hole pattern fits other commercially available junction box enclosures
