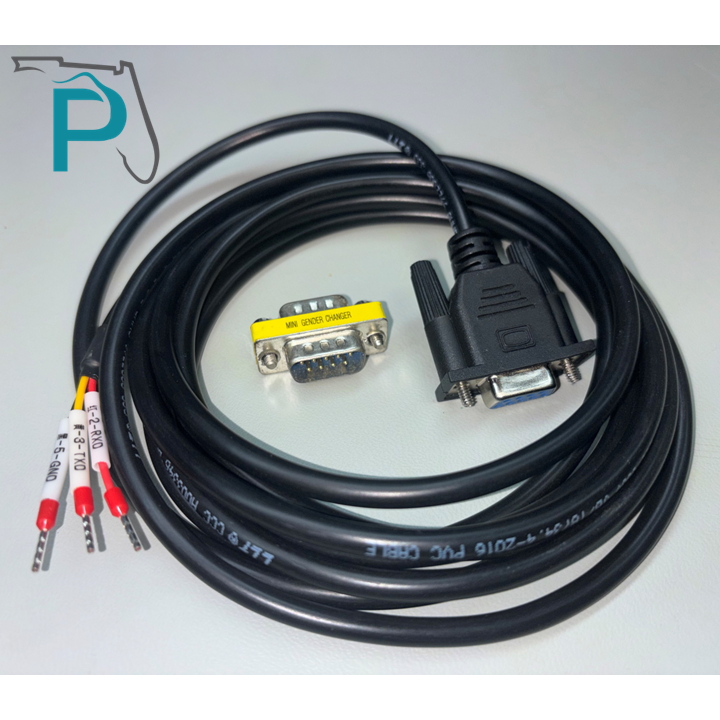

- Larger 26 Gauge wire for robust connections less susceptible to yanks and tugs
- No other conductors in the cable, only the 3 for standard bi-directional RS-232 standards
- Unshielded cable for small distance transmission to printers, computers & remote displays etc.
- Labelled wires with: ground (GND), transmit(TXD) and receive(RXD) conductors clearly shown
- High quality ferrules pre-crimped onto bare conductors for improved connection reliability
- Standard RS-232 Data connection pin outs
- Black Ground (GND) Conductor to pin 5 on DB9
- Yellow Transmit (TXD) conductor to pin 3 on DB9
- Red Receive (RXD) conductor to pin 2 on DB9
- Available in 3 Lengths:
- 3 feet long (1 meters)
- 6.5 feet long (2 meters)
- 10 feet long (3 meters)
- INCLUDED MALE to MALE DB9 Gender Changer to ensure compatibility with nearly any application or cable combination
Above is the most common connection for the DB serial cable from a scale sending data out to a PC or computer nearby that would be capturing the weight values digitally and tying it into a weight ticket or database
