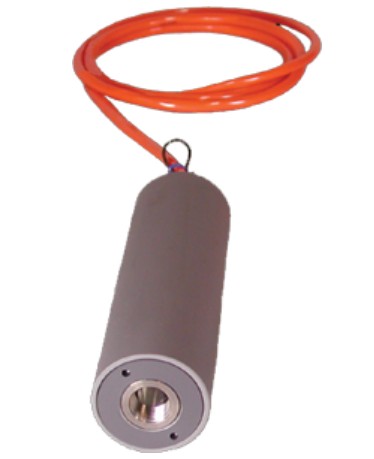

VPG Vulcan L41 - VSL Hydraulic Sensor

SPECIFICATIONS:

• Capacity: Normal working pressure: 3000 psi
• Material: Heat treated stainless steel sensor enclosed in a stainless steel housing
• Size: 2â Dia x 6.56â L
• Safe Overload: 5800 psi
• Accuracy: System accuracy typically within 1% of GVW depending on leveling     valve type, suspension and environmental factors
• Port Size: 9/16-18 SAE straight thread o-ring fitting (SAE: -6)
• Output: Power and communications on 2-wire VSL digital link

FEATURES:

• Sensor and electronics are integrated into one compact package
• East to install
• Highly reliable, no moving parts
• Rugged, stainless steel pressure sensor for harsh environments
• Eliminate overweight fines
• Monitor loading or unloading of weights at remote locations
• Save time loading, weighing and adjusting the load
• Reduce time and mileage by minimizing trips to commercial scale
• Reduce maintenance costs by not overloading the vehicle
• Prevent hauling freight in excess of contracted weight
