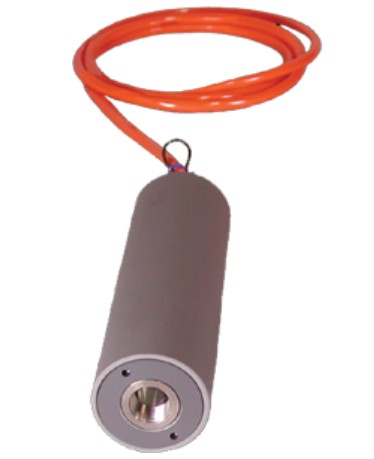

Vulcan L41 - VSL Hydraulic Sensor
Vulcan Onboard hydraulic pressure sensor L41 standard on refuse weighing systems for Galbreath or Galfab rolloff Hoists
SPECIFICATIONS:
- Capacity: Normal working pressure: 3000 psi
- Material: Heat treated stainless steel sensor enclosed in a stainless steel housing
- Size: 2â Dia x 6.56â L
- Safe Overload: 5800 psi
- Accuracy: System accuracy typically within 1% of GVW depending on leveling valve type, suspension and environmental factors
- Port Size: 9/16-18 SAE straight thread o-ring fitting (SAE: -6)
- Output: Power and communications on 2-wire VSL digital link
FEATURES:
- Sensor and electronics are integrated into one compact package
- East to install
- Highly reliable, no moving parts
- Rugged, stainless steel pressure sensor for harsh environments
- Eliminate overweight fines
- Monitor loading or unloading of weights at remote locations
- Save time loading, weighing and adjusting the load
- Reduce time and mileage by minimizing trips to commercial scale
- Reduce maintenance costs by not overloading the vehicle
- Prevent hauling freight in excess of contracted weight
